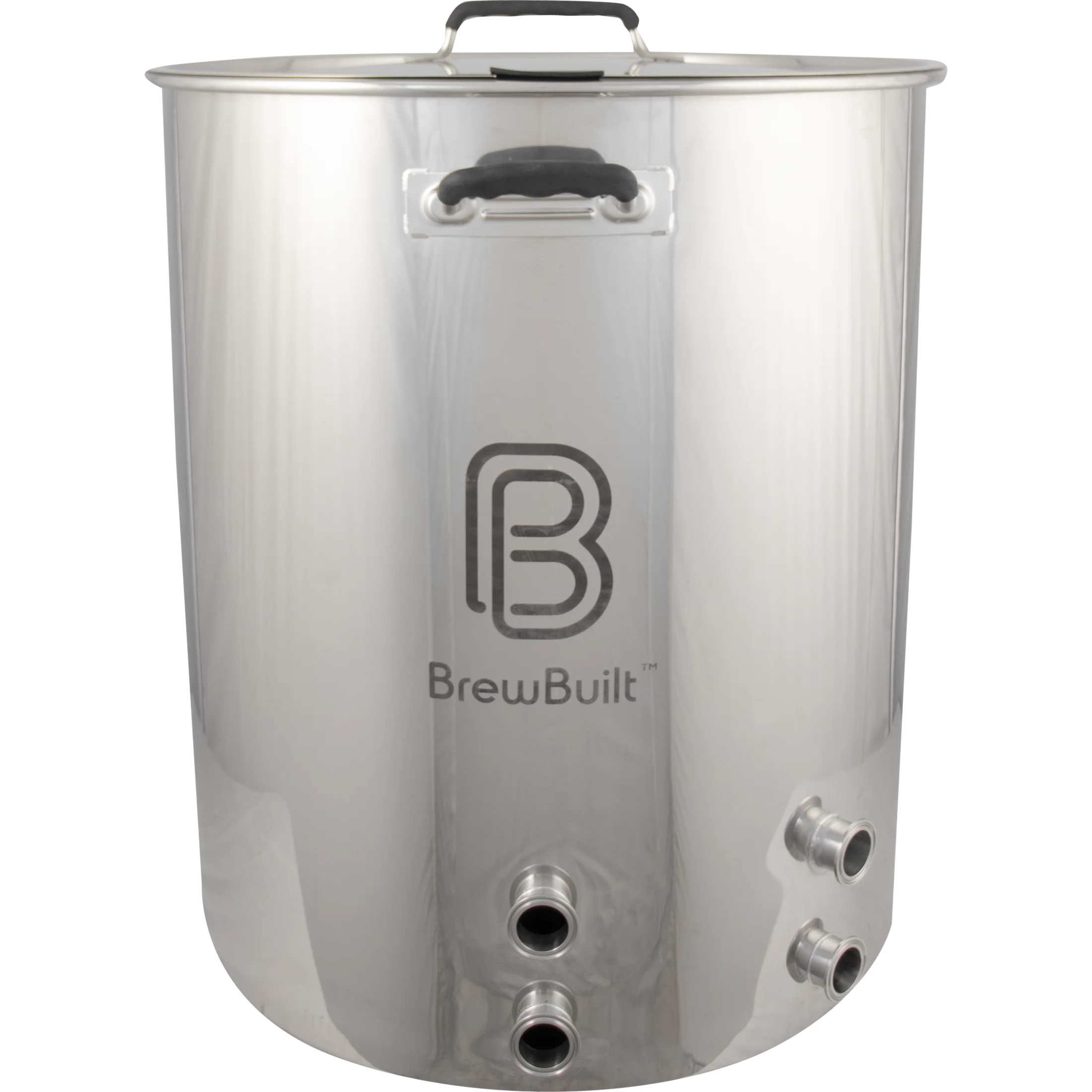

BrewBuilt® Brewing Kettle | 1.5" Tri-Clamp | Quad Port | 50 Gal.
This unique kettle with four tri-clamp ports was developed for the BrewBuilt electric kettle line as it requires two ports for two electric heating elements. The kettle is offered without fittings so you can rig it up with whatever accessories you see fit.
- Welded 1.5" tri-clamp ports for a lifetime of leak-free use
- 304 stainless steel construction with mirror polish finish
- Front and back located handles with silicone grips
- Induction burner compatible
- Notched lid provides cover while not interfering with immersion chillers, hop bags, or other accessories

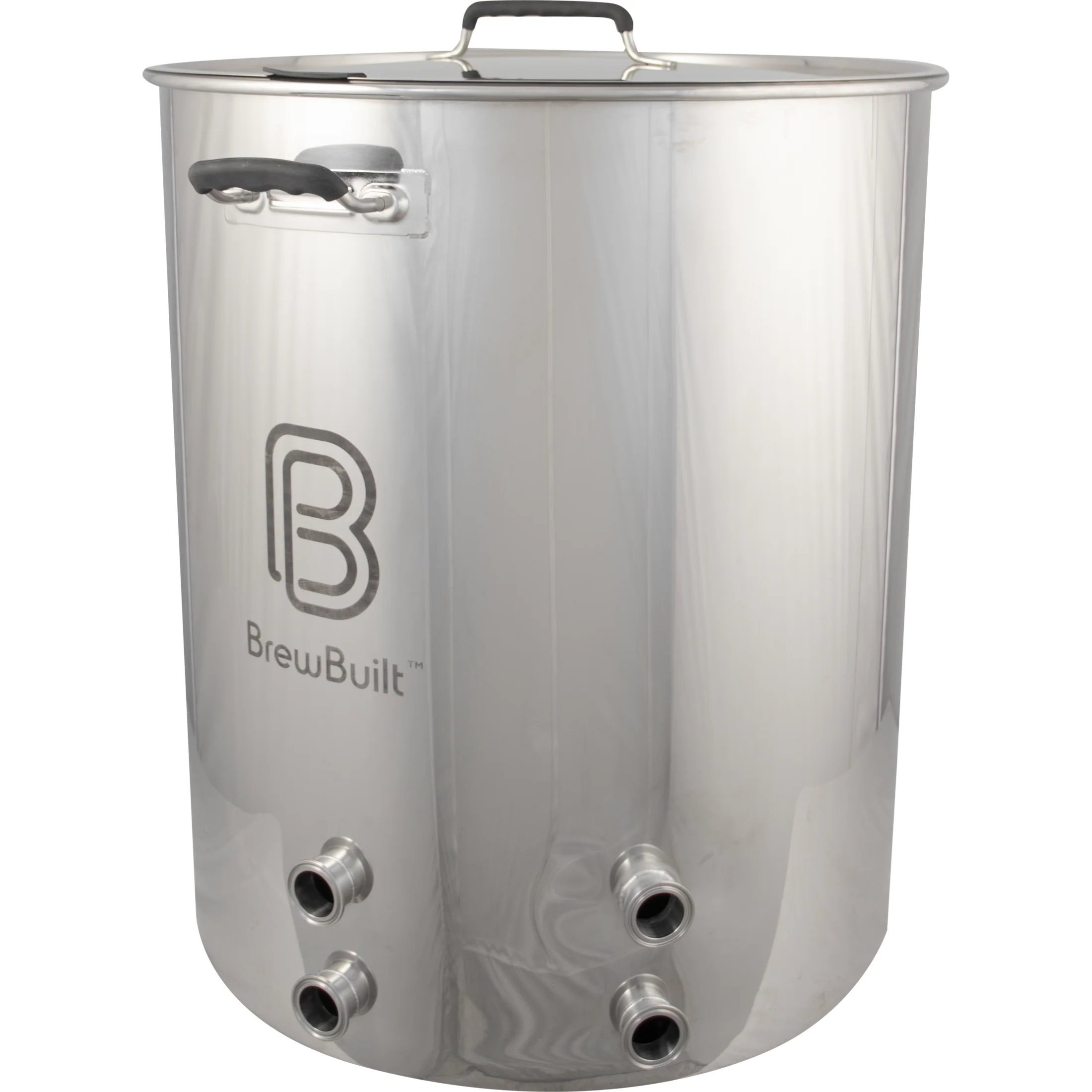

The BrewBuilt Pro Brewing Kettle is built for even more versatility than the standard T.C. kettle. A third and fourth tri-clamp port are offset from the front and ready to accept an electric heating element, whirlpool return valve, or any other accessory that you want to incorporate with the kettle. Handles are located at the front and back, rather than either side, saving you space when building out a horizontal system and will keep fittings pointed away from you regardless of which side you pick up the kettle from.
Designed for Brewing. Built to Last.
BrewBuilt brew kettles are made from 304 stainless steel and offer an unparalleled mix of features for the price. At the very top of the list are four welded-in place tri-clamp couplers that offer a lifetime of leak free use. As you can imagine, welding in a coupler costs more than punching a hole and using a gasketed (i.e. weld-less) fitting. Welded fittings offer a permanent connection that to us is worth every penny. The second unique feature that we absolutely love about these brew kettles is the notched lid with silicone plug. This notch allows you so much flexibility; you can use an immersion chiller, one of our Ultimate Sparge Arms for mashing, tie off hop bags, take a temp reading during cooling, or whatever else we all can dream up.
Our T.C. kettles were designed to keep pace with the ever-evolving world of brewing technology. Tri-clamp fittings are standard fare in professional breweries, and they’ve been widely adopted in homebrewing as T.C. fermenters and pumps become more affordable and widely available. Tri-clamp fittings, also known as Tri-clover, allow you to make a sanitary connection that is free of nooks and crannies for contaminants to take hold. They are much easier to break down for cleaning compared to threaded connections, and they don’t require Teflon tape to make a watertight seal. T.C. fittings and accessories also give you the distinct advantage of being able to clean in place (CIP), so you don’t need to break down your entire system after every brew day.
This kettle comes without fittings so you can modify it with whatever tri-clamp accessories best suit your needs.
This Brew Kettle has a lot to offer...
Some other features we dig include the internal volume markers from the bottom to the top - so handy for instant reads. The silicone sleeved handles on the kettle and the lid are a cool feature to protect your hands. The tri-clad bottom with a 4mm core of aluminum sandwiched between two layers of stainless steel offers even heat distribution during the boil and also makes it a perfect choice for anyone wanting to use an induction burner. The bottom coupler is also cool with 1/2" male threads on the outside and 1/2'' female threads on the inside.
Beefy 304 Stainless
These kettles are made from 304 grade stainless. That means you will have less corrosion issues than with a kettle made from lower grade 201 type stainless. We put these kettles through a corrosive salt water test in the MoreBeer! shop and they passed with flying colors. We also made sure the rivets and riveted handles were also made of stainless steel for a long term, trouble free life. The 10 and 15 gallon size are made from 1.0mm thick stainless steel. The 20, 30 and 50 gallon size are made with 1.2mm stainless - that's pretty thick stuff - and you will know it when you pick one up. The included ball valve is a two piece design that allows for easy cleaning (we prefer these over 3 piece for ease of assembly) and is also made from 304 stainless.
Mirror Polish Finish
The mirror polish finish isn’t just for making your Instagram feed pop! This extra slick finish is much easier to clean and sanitize than a standard brushed stainless kettle. Hop trub and other organic solids left behind after a brew day will have a hard time clinging to the interior surface and scrub away with ease.
Size Ratios and Stuff
All the BrewBuilt kettles follow the recent trend to a 1.2:1 ratio where the height is 1.2 times the diameter. This is a proven commercial ratio that has been adopted in homebrewing to achieve a more consistent 10% evaporation rate during the boil. We do like this ratio for boiling. For Mashing we would prefer a little bit shallower but that is a small compromise. Dimensions for a hot-liquor tank, if you are thinking brewing system down the road, are irrelevant as any ratio kettle will do.
Final Words
With welded tri-clamp fittings, mirror polish finish, a bunch of cool features, and a solid, thick 304 stainless steel core this kettle is a pretty amazing value. Remember, if you order from MoreBeer! we ship free anywhere in the continental USA!
Features:
- Four welded T.C. couplers for a lifetime of leak free use
- Notched lid with silicone plug for flexibility
- 304 Stainless construction for longevity
- 1.0mm (10 & 15 gal) or 1.2mm (20, 30 & 50 gal) thick side walls resist denting
- 4mm Tri-Clad Aluminum bottom sandwiched between two layers of stainless steel for no scorching
- Internally etched volume markers from top to bottom for easy reading
- Silicone coated handles for heat protection
- 1.2:1 Ratio is optimal for boiling evaporation rate
- Lid is designed to conveniently hang from a handle
- Stainless handles with stainless rivets for secure lifting
- Kettle ID - 23.62"
- Height - 28.3"
